ASTRODESIGN - Analog and Digital Video generators from

For information about this product please contact: John Halton tel:01634 298900,fax:01634 290904 , [email protected]

Programmable Video Generators are used more and more by R & D engineers, test technicians and service and maintenance specialists to make sure that today's monitors, projection systems and other displays perform according to their specifications. To simulate the R-G-B input requirements for these Display Systems, we offer a complete line of ANALOG STANDALONE, ANALOG PC-BASED and DIGITAL Programmable Video Generators, manufactured by Astrodesign.

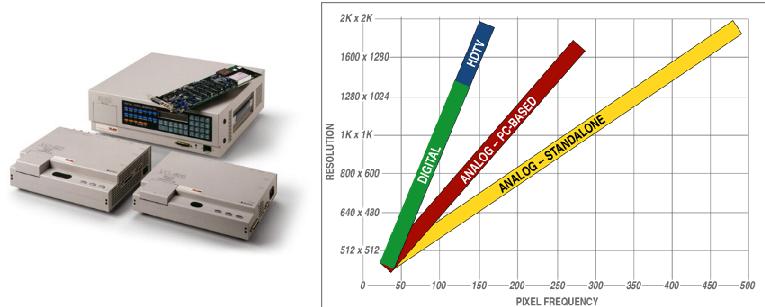

Here are the pixel or dot clock frequencies and the corresponding display resolutions:

Click this icon for datasheet where marked in table

Model Type Pixel Freq. Horiz. Scan Range

VG-854 Analogue 5-400MHz 10-300KHz

VG-844 Analogue 10-400MHz 10-300KHz

VG-823 Analogue 5-250MHz 10-130KHz

VG-813 Analogue 55-150MHz 10-130KHz

VG-812 Analogue 5-120MHz 10-130KHz

VG-860 Analogue PCI 5-250MHz 10-300KHz

VG-828D Analogue/Digital 5-250MHz (Anal)/5-200NHz (Digi) 10-130KHz

VG-827 Analogue/Digital 5-150MHz(Anal)/5-150MHz(Digi) 10-130KHz

VG-852 Digital 5-200MHz 10KHz+

VG-845 Digital 10-200MHz 10-300KHz

VG-826A Digital 5-75MHz 10-130KHz

VG835e Digital 5-300MHz 10-300KHz

VG847 Fixed Timing N/A N/A

VG-853 Fixed Timing 5-400MHz N/A

SG-7800 Fixed Timing HDTV N/A

SG-7802 Fixed Timing HDTV N/A

For information about this product please contact: John Halton tel:01634 298900,fax:01634 290904 , [email protected]

Model	Type	Pixel Freq.	Horiz. Scan Range
VG-854	Analogue	5-400MHz	10-300KHz
VG-844	Analogue	10-400MHz	10-300KHz
VG-823	Analogue	5-250MHz	10-130KHz
VG-813	Analogue	55-150MHz	10-130KHz
VG-812	Analogue	5-120MHz	10-130KHz
VG-860	Analogue PCI	5-250MHz	10-300KHz
VG-828D	Analogue/Digital	5-250MHz (Anal)/5-200NHz (Digi)	10-130KHz
VG-827	Analogue/Digital	5-150MHz(Anal)/5-150MHz(Digi)	10-130KHz
VG-852	Digital	5-200MHz	10KHz+
VG-845	Digital	10-200MHz	10-300KHz
VG-826A	Digital	5-75MHz	10-130KHz
VG835e	Digital	5-300MHz	10-300KHz
VG847	Fixed Timing	N/A	N/A
VG-853	Fixed Timing	5-400MHz	N/A
SG-7800	Fixed Timing	HDTV	N/A
SG-7802	Fixed Timing	HDTV	N/A
